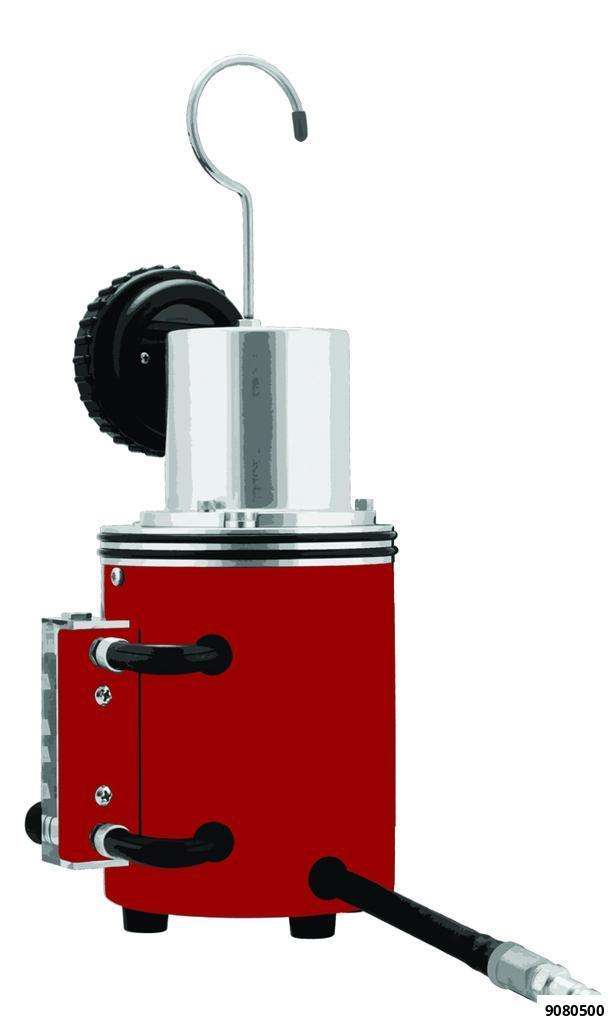

Universal "Smoke Pro" leak indicator

The leak indicator is an essential tool for finding leaks in pressure and negative pressure systems, exhaust systems and many others.
The device creates steam, which passes into the testing system via an external air connection.

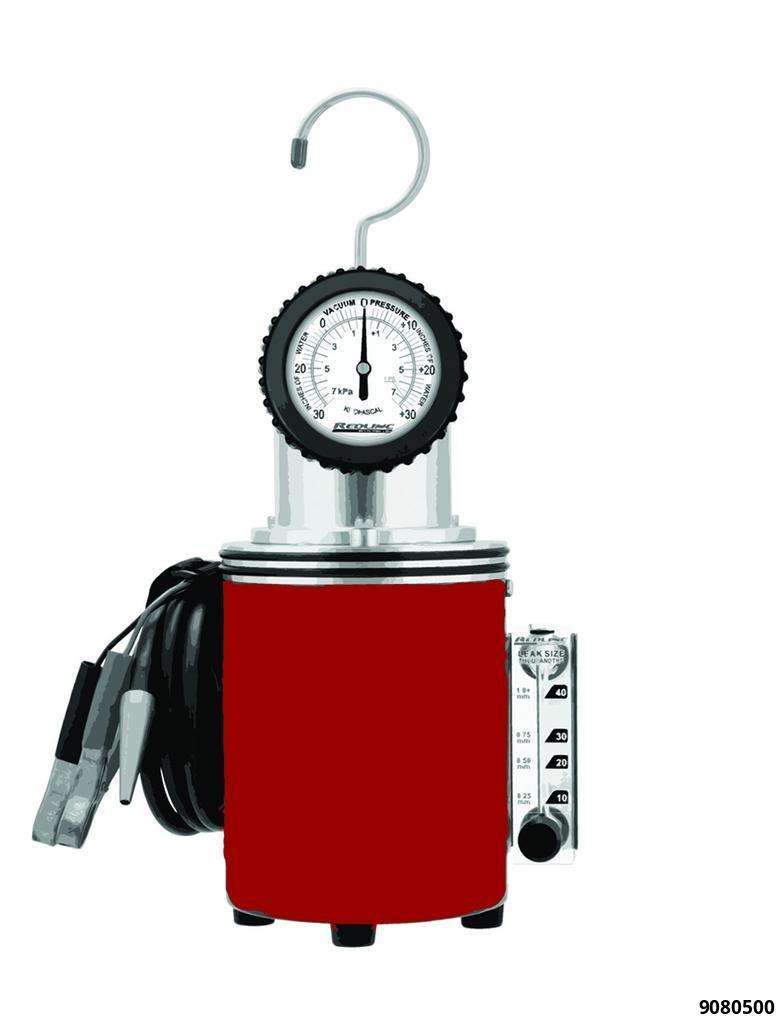

If there is a leak, steam discharges there. Leak-tightness can also be checked using a pressure gauge. The flow control valve provides immediate information as to whether there is a leak, and also estimates its approximate size.

Areas of use:
- The tank and surge tank
- Charge air coolers, turboloaders
- The carburettor system
- Butterfly valves
- ERG valves
- Ventilation systems
- Water circulation
- Door and window seals
- Brake servo units
- Vacuum-controlled door systems
- Membranes and oil seals
- and many more

Transport weight: 6kg
Power supply: 12V
Direct current
Energy consumption: 7A
Initial pressure: 0,032 bar
Working temperature: -17°C to 60°C
Smoke hose: 3,05m
Power supply cable: 3,05m
Casing material: Steel

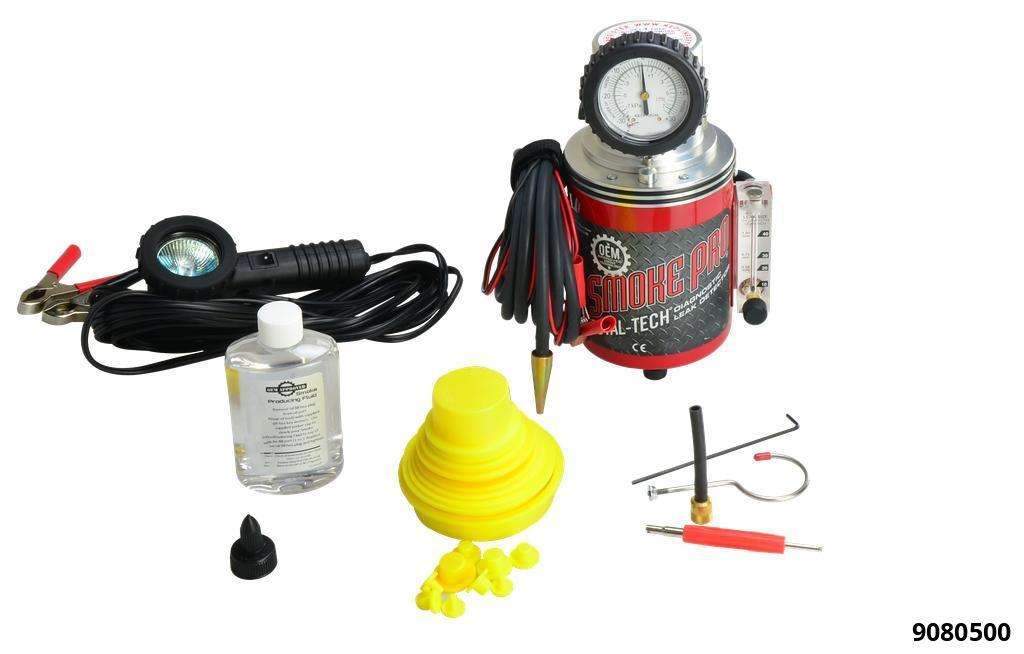

Content:
- Standard cone adapter for bringing smoke into the exhaust and inlet system
- Sealing cap set for sealing openings for tests under pressure
- Halogen inspection light for detecting very small billows of smoke under the hood or chassis
- Original manufacturer of approved smoking material for approximately 500 tests (236ml)
