VAG Bolted Wheel Bearing Toolkit MK II without Spindle with 4 Extraction Discs

VAG Bolted Wheel Bearing Toolkit MK II without Spindle with 4 Extraction Discs

  • For dismounting of all bolted hub and wheel bearing units of VAG vehicles
- The existing sets 9169485, 9169490 and 9169495 were supplemented with 2 pull disks so that alsosmall hub and wheel bearing units can be dismounted.
- The milled slots of the support tube provide optimal a support on the steering knuckle.
- Suitable for mechanical and hydraulic actuation.

Suited for:
Suitable for all bolted wheel bearing and wheel hub units of VAG vehicles

The VAG wheel bearing tool (9169490 / 9169495) can be supplemented with 5 and 6 (with or without through hole) to the complete set.

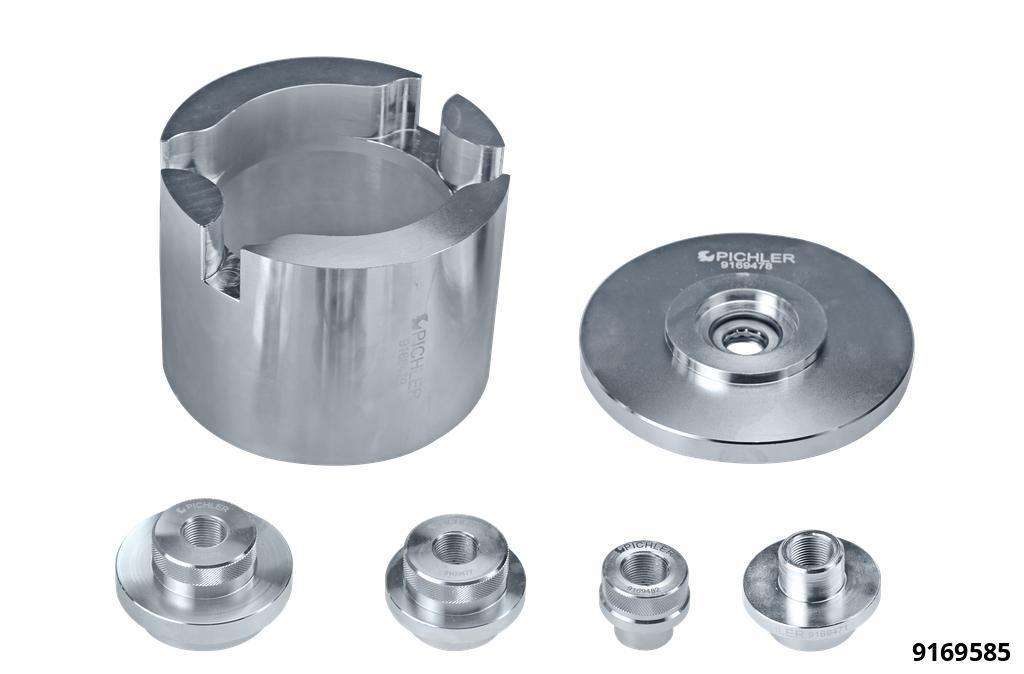

Content
1. 9169479 Puller Pipe MK II useable on both sides (with through hole: 9169479)
2. 9169478 Support Disc Stepped with Bearing (with through hole: 9169488)
3. 9169476 Extraction Disc with Internal Thread M20x1.5 for the wheel bearing unit (with through hole: 9169486)
4. 9169477 Extraction Disc with Internal Thread M20x1.5 for the hub (with through hole: 9169487)
5. 9169482 Extraction Disc with Internal Thread M20x1.5 (with through hole: 9169492)
6. 9169471 Extraction Disc with Internal Thread M20x1.5 useable on both sides (with through hole: 9169481)
Product number9169585
MarkenSkoda, Volkswagen, Audi
